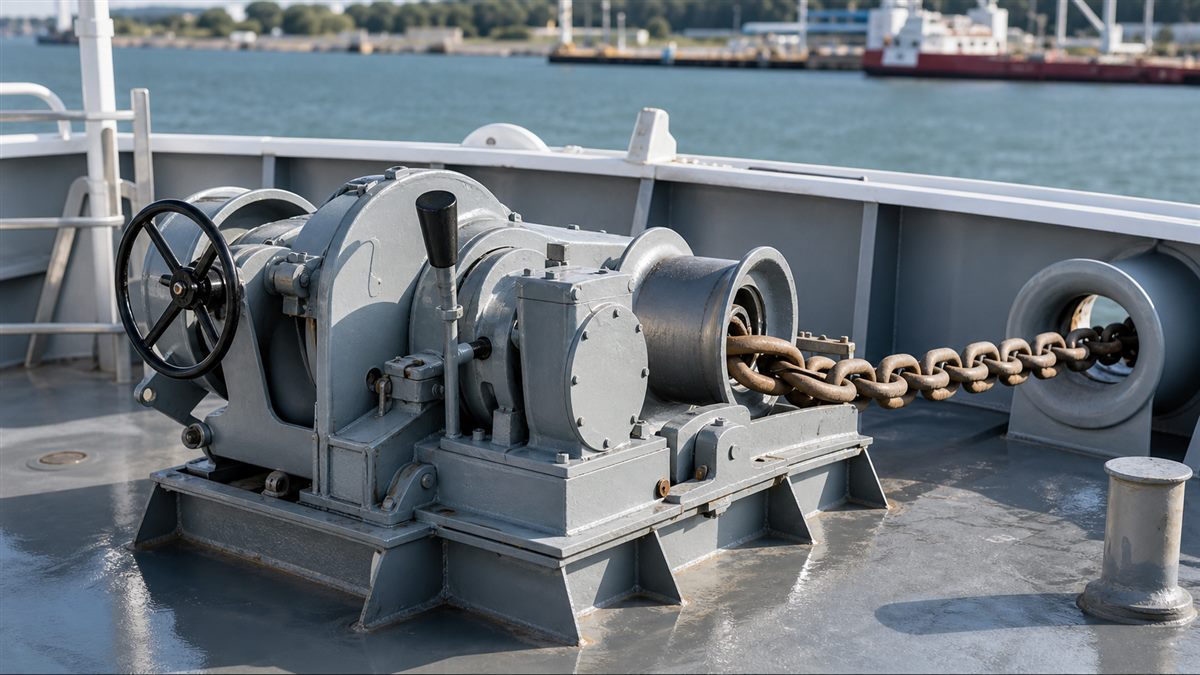

Selecting an anchor windlass is not simply a matter of choosing a unit with enough pulling force from a catalogue. On a working vessel, the windlass is part of the anchoring system, deck layout, electrical or hydraulic power system, hull structure, classification documentation, and daily operating routine. A well-selected windlass helps the crew handle anchoring safely and predictably. A poorly matched unit can create slow anchoring operation, excessive wear, foundation problems, chain handling issues, hydraulic overheating, electrical overload, or difficult maintenance. For shipyards, owners, and marine procurement teams, the best selection process begins with the vessel's real operating profile and then works through load, chain size, installation, power source, controls, materials, documentation, and lifecycle support.
The first step is to define the application clearly. A harbor tug, coastal cargo vessel, fishing vessel, offshore workboat, passenger vessel, and ocean-going ship do not use anchoring equipment in exactly the same way. Some vessels anchor frequently in sheltered waters, while others may use the windlass less often but require higher reliability in rougher conditions. The designer or buyer should clarify vessel type, length, displacement, anchor weight, chain diameter, grade of chain, required chain length, anchoring depth, expected holding conditions, deck exposure, and whether the windlass will serve one anchor or two. It is also important to know whether the unit must include warping heads, mooring drum functions, chain stoppers, remote controls, hydraulic power units, or special foundation arrangements.
Anchor chain size is one of the most direct selection inputs. The chain wheel, also called the gypsy or wildcat, must match the chain diameter, chain grade, and link geometry. If the chain wheel does not match the chain, the chain can jump, jam, wear quickly, or fail to seat correctly during recovery. Buyers should avoid vague descriptions such as "suitable for 20 mm chain" without confirming the chain standard and actual link dimensions. For replacement projects, it is useful to measure the existing chain and inspect wear condition before ordering a new windlass. For newbuild projects, the windlass, anchor, chain, chain stopper, hawse pipe, chain locker, and deck arrangement should be reviewed as one system rather than as separate purchases.
Rated load and nominal pull must be reviewed carefully. The windlass must be able to lift anchor and chain under specified conditions and handle the operating loads expected by the vessel. Selection commonly considers working load, nominal pull, overload capacity, brake holding capacity, chain speed, and the duty cycle of the motor or hydraulic system. Chain speed should be practical for crew operation; a very slow unit can waste time, while an overly fast arrangement may be harder to control safely. Brake holding capacity is especially important because the brake must hold the anchor and chain securely when required. The chain stopper normally carries the main anchoring load once set, but the windlass brake and clutch still need correct capacity and reliable operation.
The power source is a major decision. Electric anchor windlasses are common on many vessels because they offer straightforward installation, clean operation, and easy integration with electrical controls. They require suitable voltage, frequency, motor rating, starter or variable control arrangement, cable sizing, overload protection, and protection against water and corrosion. Hydraulic windlasses are often selected where high torque, robust duty, or integration with existing hydraulic systems is preferred. A hydraulic arrangement requires oil flow, pressure, motor displacement, piping size, filtration, tank capacity, cooling, relief valve settings, and leak control to be properly considered. Pneumatic units are less common but may appear in special applications. The correct choice depends on available power, vessel duty, crew maintenance capability, space, and integration with other deck machinery.
For electric windlasses, buyers should clarify motor enclosure, insulation class, duty rating, starting current, control voltage, emergency stop arrangement, limit protection where applicable, and local or remote control requirements. A motor exposed on the forecastle deck faces salt spray, rain, vibration, and temperature changes. The starter cabinet may be located near the windlass or in a protected electrical space, and that decision affects cable length, voltage drop, maintenance access, and environmental protection. For hydraulic windlasses, the buyer should clarify whether the hydraulic power unit is included, whether the vessel already has a compatible hydraulic system, and how heat will be managed during repeated operation. Hydraulic overheating is often not a windlass problem alone; it may be a system sizing, cooling, or duty cycle problem.
Deck arrangement and installation space must be checked before purchase. The windlass needs a strong foundation, correct chain lead, adequate access around clutch and brake handles, safe crew working space, and alignment with the chain pipe, hawse pipe, chain locker, and chain stopper. The chain should run smoothly without excessive side load or sharp misalignment. If the chain enters the chain locker poorly, it may pile unevenly, jam, or require manual intervention. On small vessels, limited deck space can make this issue more serious. Shipyards should review general arrangement drawings, deck reinforcement, bolt pattern, baseplate height, shaft orientation, handwheel or lever swing space, and lifting route before production begins.
Foundation strength is not a minor detail. During anchoring, shock loads and braking loads can be transmitted into the deck structure. The windlass base should be supported by adequate deck plating, stiffeners, and under-deck structure according to the vessel design and applicable rules. Poor foundation stiffness can lead to vibration, bolt loosening, gear misalignment, cracked welds, or oil leakage. For replacement projects, the existing foundation should be inspected for corrosion, deformation, old bolt hole damage, and compatibility with the new unit. A slightly cheaper windlass that requires extensive deck modification may become more expensive than a better-matched unit with a suitable footprint.
Controls should be designed for safe and practical operation. Local control at the windlass is usually important because the crew needs to observe the chain, anchor, clutch, brake, and deck area. Remote control from the bridge or another position may also be required, especially on vessels where anchoring is coordinated with maneuvering. Control stations should include clear direction indication, emergency stop, protection against accidental operation, and suitable enclosure protection for exposed locations. Communication between bridge and deck crew remains important even with remote control. For complex vessels, signals from the windlass may be integrated with alarm or monitoring systems, but the core requirement is still safe, understandable control under real operating conditions.
Material and surface protection affect long-term reliability. Anchor windlasses are usually installed in exposed deck areas where salt spray, rain, mechanical impact, and ultraviolet exposure are normal. Cast steel, fabricated steel, bronze bushings, stainless fittings, coated fasteners, and marine paint systems may all be part of the final design. The chain wheel, gears, shafts, brake lining, clutch components, bearings, seals, and covers should be suitable for marine service and accessible for inspection. Corrosion around small components can make a windlass difficult to operate even when the main frame looks strong. Grease points, drain arrangements, cover plates, and replacement access should be reviewed as part of the selection rather than left to maintenance crews later.
Classification and documentation requirements should be confirmed early. Depending on vessel type, size, flag, and class notation, the windlass may need design review, material certificates, shop test records, load test documentation, inspection reports, drawings, manuals, and spare-parts lists. The buyer should clarify the applicable classification society, document language, certificate type, and whether third-party inspection is required before production. It is risky to assume that a standard commercial catalogue item automatically satisfies the documentation needs of a classified vessel. Even when the equipment itself is suitable, missing documents can delay delivery, installation approval, or vessel acceptance.
Braking and clutch arrangements require close attention. The brake must be easy to operate, capable of holding the specified load, and maintainable. Brake linings wear over time and should be replaceable. The clutch should engage and disengage smoothly, with clear operating positions and secure locking. Crew should be trained to understand the difference between lifting operation, controlled lowering, brake holding, and securing the chain with a stopper. A windlass is not intended to absorb every anchoring load indefinitely through the gear train. Proper use of the brake, clutch, and chain stopper protects the equipment and reduces wear.
Spare parts and maintenance planning should be part of the purchase decision. Typical spare considerations include brake linings, seals, bearings, hydraulic motor service parts, solenoid valves, control switches, fuses, indicator lamps, contactors, gaskets, lubricants, and selected fasteners. For vessels operating far from major ports, a small but practical onboard spare kit can reduce downtime. Maintenance should include lubrication, brake inspection, checking fastener tightness according to procedure, inspecting hydraulic hoses or electrical cables, removing salt deposits, testing controls, checking oil leakage, verifying chain wheel wear, and operating the unit periodically even if the vessel anchors infrequently. Equipment that is never exercised can become stiff, corroded, or unreliable when finally needed.
Lifecycle value should be compared instead of purchase price alone. A low-cost windlass may look attractive until the project adds foundation changes, missing documentation, poor spare-parts support, longer delivery risk, or difficult maintenance access. A technically suitable unit with clear drawings, correct chain wheel machining, reliable braking components, good coating, accessible service points, and responsive supplier support may offer better value over the vessel's operating life. For shipyards, predictable installation and documentation can be as important as the equipment cost. For owners, safe operation and reduced downtime often matter more than the lowest initial quotation.
When requesting an anchor windlass quotation, the buyer should provide as much practical information as possible: vessel type, class, flag if relevant, anchor weight, chain diameter and standard, number of anchors, required chain speed, power source, voltage or hydraulic parameters, deck layout, available installation space, control requirements, environmental exposure, documentation requirements, and expected delivery schedule. If drawings are available, the supplier can check footprint, chain lead, control arrangement, and interface risks more accurately. When information is incomplete, a responsible supplier should ask clarification questions rather than simply offering the nearest catalogue model.
Selecting anchor windlasses well means treating the equipment as part of a complete anchoring system. The right unit must match the vessel, chain, anchor, deck structure, power source, controls, class requirements, and maintenance plan. This engineering approach reduces avoidable rework and helps the crew operate with confidence when anchoring conditions are demanding. For shipyards and vessel operators, careful technical clarification before production is the most practical way to obtain a windlass that installs cleanly, operates safely, and remains maintainable throughout its service life.
