How to Choose the Right Marine Gearbox for Your Vessel

A marine gearbox is much more than a transmission. It is a key component that directly affects vessel performance, fuel efficiency, reliability, and maintenance costs. Selecting the right gearbox from the beginning can save significant time and money throughout the vessel's service life.

What Does a Marine Gearbox Do?

A marine gearbox performs several important functions:

* Forward and reverse operation
* Clutch engagement and disengagement
* Speed reduction between engine and propeller
* Bearing propeller thrust
* Matching the engine output with the propeller requirements

Together with the engine, it forms the complete marine propulsion system.



1. Match the Gearbox to Your Engine

One of the most important factors is ensuring the gearbox matches the engine's continuous power and rated speed.

The gearbox selection should always be based on the engine's continuous operating conditions rather than maximum output. An oversized or undersized gearbox can reduce efficiency and shorten service life.

2. Choose the Correct Reduction Ratio

Different vessels require different reduction ratios.

For example:

* High-speed patrol boats generally require lower reduction ratios.
* Fishing vessels often use medium ratios.
* Cargo vessels, workboats, and tugboats usually require higher reduction ratios to generate greater propeller thrust.

Choosing the proper ratio ensures better propulsion efficiency and lower fuel consumption.

3. Consider Installation Method

The engine and gearbox should not be connected rigidly.

If the engine is mounted on flexible mounts while the gearbox is mounted on a rigid foundation, a highly flexible coupling should be used to protect the drivetrain from vibration and misalignment.



4. Think Beyond Power

When selecting a gearbox, engineers should also consider:

* Engine speed range
* Bell housing standard
* Flange size
* Centre distance
* Available installation space
* Net weight
* Control method (mechanical, electric or pneumatic)
* PTO requirements
* Propeller thrust

These factors are just as important as horsepower.

5. Plan for Future Maintenance

A quality marine gearbox should provide:

* Reliable performance under continuous operation
* Easy maintenance
* Availability of spare parts
* Long service life
* Technical support when needed

Choosing a supplier with strong engineering support can greatly reduce downtime in the future.

Why Work with Sinooutput?

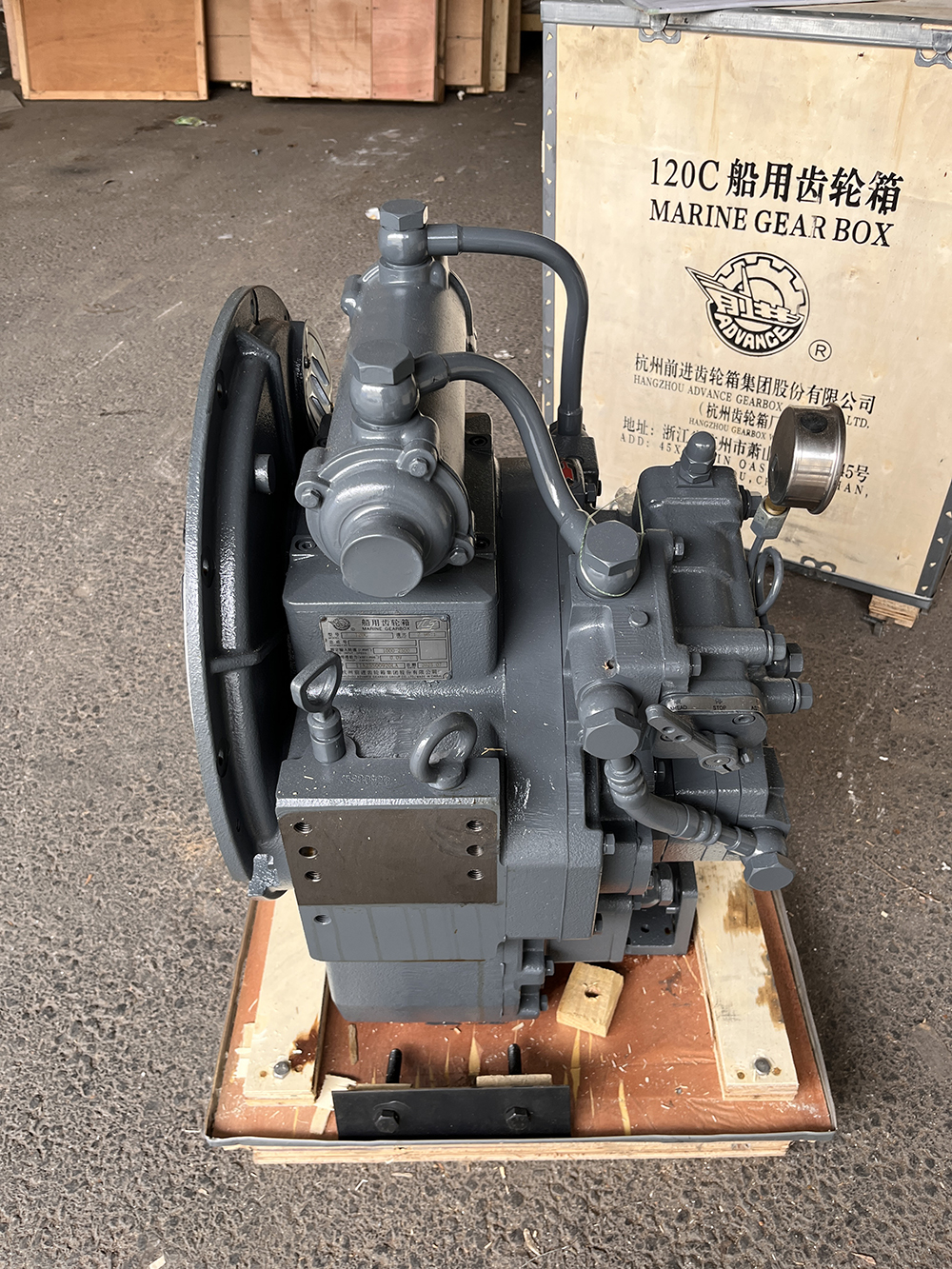

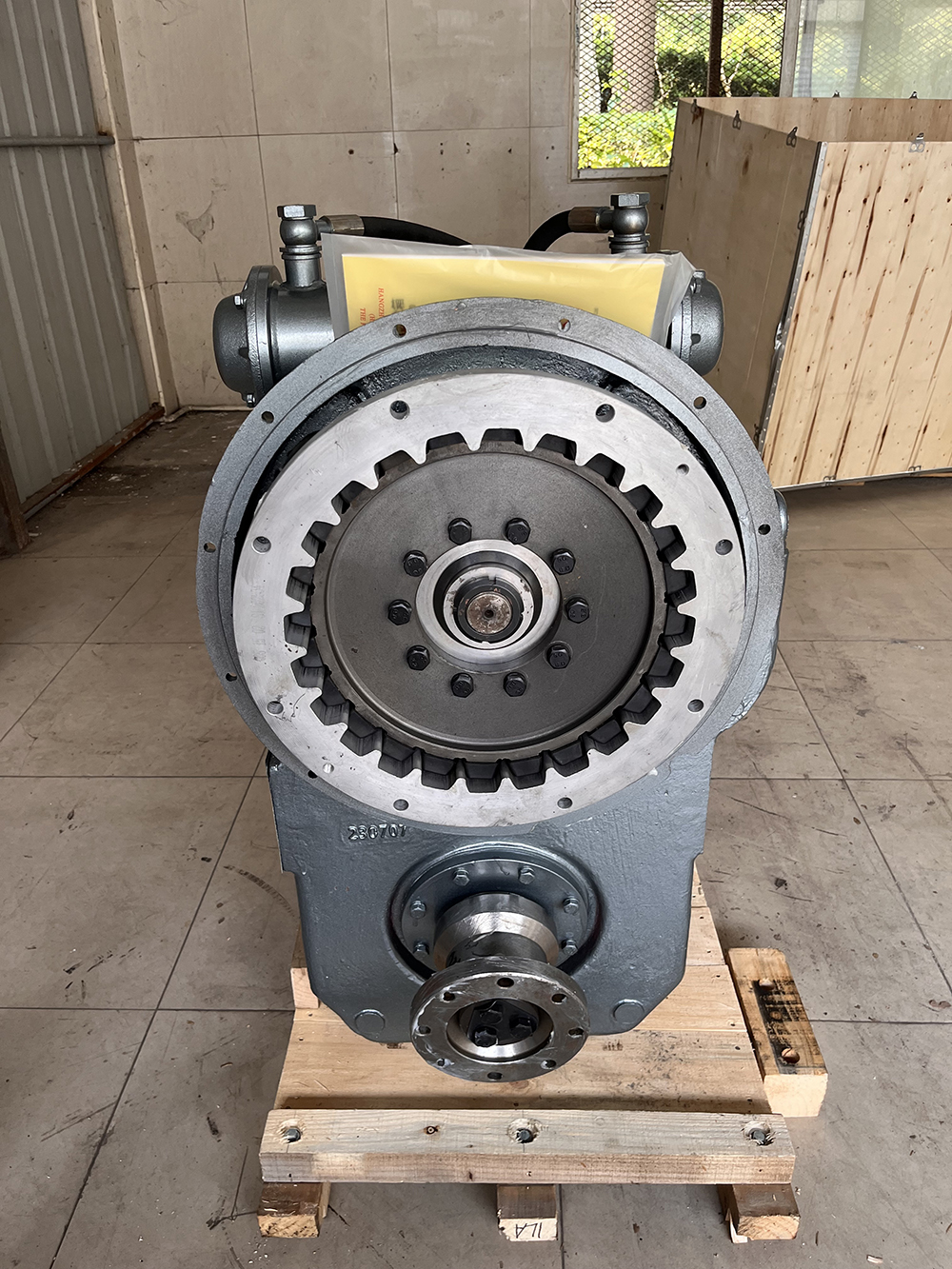

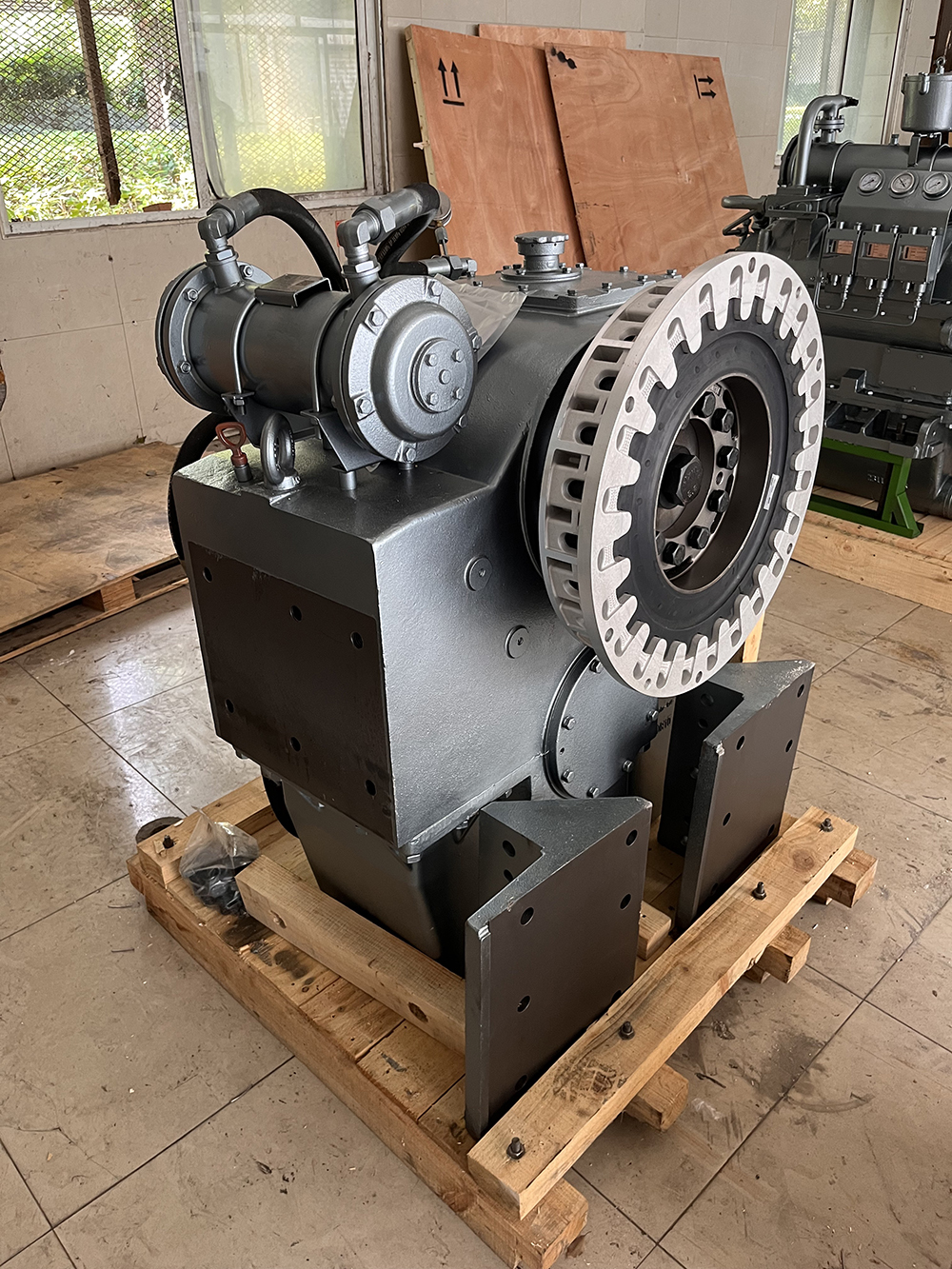

At Sinooutput, we supply a complete range of marine gearboxes covering power from **10 kW to 3000 kW**, with reduction ratios from **1.5:1 to 20:1**, suitable for fishing vessels, workboats, transport vessels and many other marine applications.

Our engineering team helps customers select the most suitable gearbox based on engine specifications, vessel type, operating conditions and propulsion requirements—not simply by horsepower.

Whether you are building a new vessel or replacing an existing gearbox, we are ready to provide professional technical recommendations and complete propulsion solutions.



Need help selecting the right marine gearbox?

Simply send us your engine model, horsepower, rated RPM, vessel type and expected reduction ratio. Our engineers will recommend the most suitable gearbox for your project.
