Fuel oil systems are among the most important service systems on a vessel because they connect fuel storage, treatment, transfer, heating, filtration, and engine supply into one continuous operating chain. A main engine or generator can only perform reliably when the fuel delivered to it is clean, correctly pressurized, at the right temperature and viscosity, and available under changing operating conditions. For shipowners, shipyards, and equipment buyers, understanding the practical basics of fuel oil systems helps clarify specifications, reduce installation mistakes, and identify early warning signs before they become costly failures.
The starting point is the vessel's operating profile. A coastal workboat, harbor tug, fishing vessel, tanker, offshore support vessel, and ocean-going cargo ship may all use fuel oil, but their load patterns and fuel management requirements can be very different. A tug may see rapid engine load changes during maneuvering, while a cargo vessel may operate for long periods at steady load. A fishing vessel may need reliable generator fuel supply while hotel, refrigeration, and deck loads vary. The fuel oil system must match these real operating conditions rather than only a generic engine rating. Fuel type, fuel quality, storage volume, voyage duration, ambient temperature, class requirements, and redundancy philosophy should be reviewed together.
A typical marine fuel oil system begins with storage tanks. Fuel may be stored in double bottom tanks, deep tanks, or dedicated service tanks depending on vessel design. These tanks need suitable filling lines, venting, sounding or level measurement, drains, sludge removal arrangements, heating where required, and access for inspection. Tank coatings, structural arrangement, and drainage details matter because water, sediment, and microbial contamination can settle at low points. If the tank arrangement does not allow proper stripping or inspection, contamination may continue entering the downstream system even when filters and purifiers are maintained correctly.
Fuel transfer is the next major function. Transfer pumps move fuel from storage tanks to settling tanks, service tanks, or treatment equipment. Pump selection depends on fuel viscosity, temperature, required flow, suction conditions, discharge pressure, duty cycle, and redundancy. Positive displacement pumps are common for fuel oil service because they can handle viscous fluids, but they must be protected against overpressure with relief valves or suitable control arrangements. Suction strainers, isolation valves, pressure gauges, and bypass lines should be arranged so crew can maintain the system without unnecessary shutdown. Poor suction conditions can cause cavitation, noise, reduced flow, or pump damage.
Fuel treatment is critical because engines and injection equipment are sensitive to water and solid particles. Settling tanks allow water and sludge to separate before the fuel is further processed. Purifiers or separators remove water and fine solids by centrifugal action. Filters then protect downstream pumps, heaters, valves, and engine components. The treatment arrangement should be matched to the fuel type and engine maker's requirements. It is not enough to install a purifier and assume the fuel is safe. Correct temperature, flow rate, gravity disc or control settings where applicable, sludge discharge, sealing water management, and routine inspection all affect separator performance.
Heating and viscosity control are important when heavier fuels or high-viscosity distillate blends are used. Fuel must reach the engine at a viscosity suitable for injection and combustion. If the fuel is too cold and viscous, atomization may be poor, strainers may clog, pumps may work harder, and combustion quality may suffer. If the fuel is overheated, there can be vapor problems, leakage risk, or material stress. Marine fuel systems commonly use steam, thermal oil, electric heaters, or hot water arrangements depending on vessel design. Temperature sensors, viscosity controllers, pressure controls, and safety devices should be installed where required, and the heating arrangement must be insulated and accessible for maintenance.
The daily service tank or day tank is the controlled fuel source for engines and generators. It should provide a stable fuel supply volume, allow drainage of water or sediment, and support safe operation during changes in transfer or treatment equipment status. Level alarms, overflow arrangements, quick-closing valves where required, drains, air vents, and heating coils should be reviewed carefully. The day tank is not just a container; it is a safety and reliability interface between storage, treatment, and engine supply. Incorrect overflow or venting arrangements can create serious operational and environmental risks.

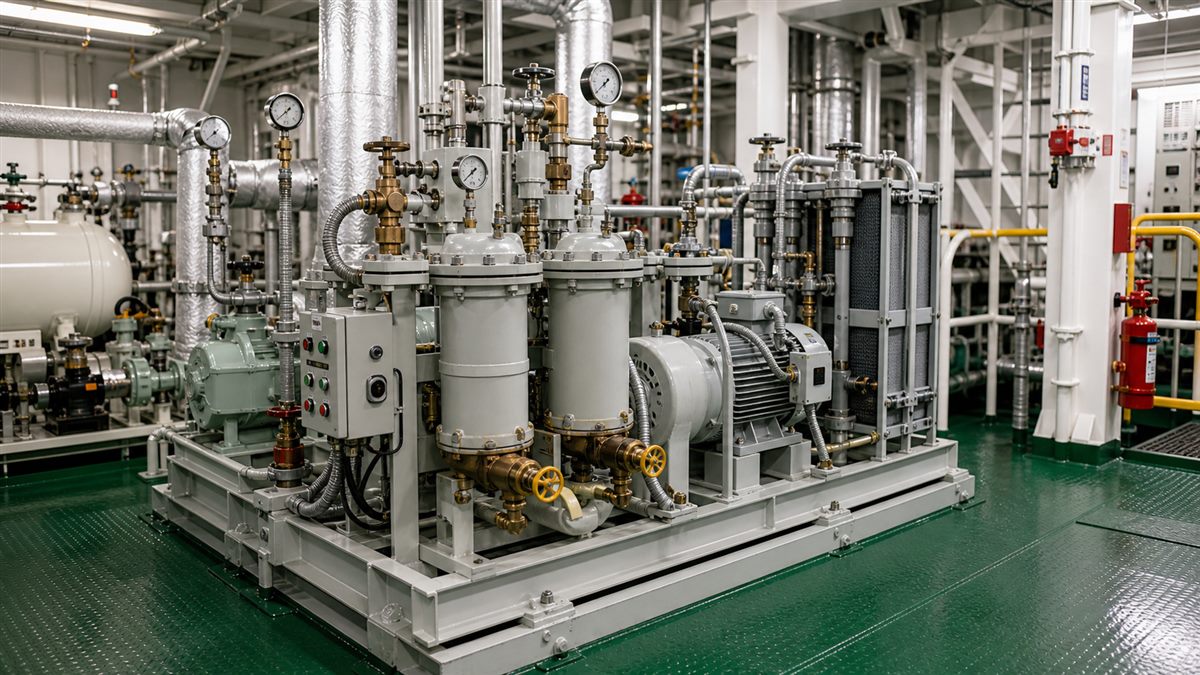

The fuel supply unit delivers fuel from the service tank to the engine at the required pressure, temperature, and cleanliness. This package may include supply pumps, circulation pumps, heaters, automatic filters, viscosity control, pressure regulation, flow meters, mixing columns, and control panels. The arrangement depends on whether the engine uses marine gas oil, marine diesel oil, heavy fuel oil, or other approved fuels. Redundant pumps and filters are often required for reliable operation. Duplex filters are useful because one filter can be cleaned while the other remains in service, but only if the crew has safe access and understands the changeover procedure.
Return fuel management is another practical design point. Fuel not consumed by the engine may return hot to a mixing tank, circulation line, or service tank depending on system design. Return fuel can affect temperature stability, viscosity control, tank temperature, and fuel compatibility. When switching between fuel types, such as from heavy fuel oil to distillate fuel, the changeover rate should be controlled to avoid thermal shock, viscosity problems, or leakage at seals and pumps. Engine maker guidance should be followed, and the crew should have clear operating procedures for fuel changeover.
Piping material, routing, and installation quality strongly influence long-term reliability. Fuel oil lines must be properly supported, protected from vibration, and routed away from unnecessary heat sources or damage risk. Flanged joints, threaded connections, flexible hoses, and instrument fittings should be minimized where practical and installed correctly. Leaks near hot surfaces are a major fire hazard, so shielding, insulation, double-wall piping where required, spray protection, and proper drain arrangements deserve close attention. A clean drawing is not enough; installation workmanship determines whether the system remains tight and serviceable after months of vibration and thermal cycling.
Safety devices are essential in fuel oil systems. Depending on vessel type and applicable rules, the system may include remote quick-closing valves, emergency pump stops, high and low level alarms, high temperature alarms, low pressure alarms, filter differential pressure alarms, leakage detection, drip trays, fire-safe valve arrangements, and insulation around hot surfaces. Safety devices should be tested and documented. A quick-closing valve that is never tested may not operate when needed, while a blocked drip tray drain or missing spray shield may turn a small leak into a larger hazard.
Filtration should be treated as an operating strategy rather than a simple spare part issue. Filters protect equipment, but they also provide information. A rising differential pressure can indicate fuel contamination, wax formation, sludge carryover, incorrect temperature, or downstream restriction. Frequent filter clogging should not be solved only by replacing elements; the cause should be investigated. Sampling, tank drainage, purifier performance checks, and review of fuel bunkering records may be needed. For vessels operating in areas with variable fuel quality, a practical onboard spare filter stock is important.
Fuel sampling and documentation support both maintenance and dispute prevention. Bunker samples, delivery notes, fuel analysis reports, tank records, purifier records, and filter change logs help identify fuel quality problems. If an engine issue occurs after bunkering, accurate records can help determine whether the cause is contamination, incompatible fuel, incorrect handling, or equipment malfunction. Good documentation also supports planned maintenance because trends in sludge volume, filter life, separator performance, and tank drainage can show when the system needs deeper attention.
Maintenance should focus on early warning signs. Crew should inspect for fuel leaks, unusual pump noise, vibration, hot bearings, loose supports, damaged insulation, blocked drains, abnormal pressure readings, high filter differential pressure, unstable temperature control, water in drains, and unusual fuel odor. Pump coupling alignment, relief valve function, filter gasket condition, heater cleanliness, sensor calibration, and valve operation should be included in scheduled checks. Small leaks and loose supports should be corrected quickly because fuel oil systems operate near machinery spaces where heat, vibration, and ignition sources may be present.
For shipyards and buyers, the best procurement questions are specific. What fuel types will the vessel use? What are the engine maker's required fuel pressure, temperature, filtration, and viscosity limits? What pump capacity and redundancy are required? Are heaters, automatic filters, purifiers, flow meters, control panels, or quick-closing valves included in the supply scope? What piping standards, flange standards, material requirements, and class documents apply? What alarms must connect to the vessel monitoring system? What maintenance space is available around filters, pumps, and heaters? Answering these questions early prevents mismatched equipment and late-stage rework.
Fuel oil systems are practical engineering systems built around cleanliness, temperature control, pressure stability, safe containment, and maintainable installation. When storage tanks, transfer pumps, purifiers, filters, heaters, service tanks, supply units, return lines, alarms, and maintenance routines are designed as one connected system, the vessel gains better reliability and safer daily operation. For marine projects, a clear understanding of fuel oil fundamentals makes technical discussions faster, improves equipment selection, and helps prevent avoidable failures throughout the vessel lifecycle.
A clear understanding of marine fuel oil system fundamentals helps shipyards and vessel operators specify equipment accurately, reduce installation risk, and prevent avoidable fuel-related failures.
