Desciption

HC series marine gearboxes have a power range of 10kW to 3000kW and a speed ratio range of 1.5 to 24:1. The product specifications are complete and the market share is high. They are widely used in various heavy-duty ships such as transport vessels, fishing vessels, and work vessels. The company's product design and manufacturing capabilities are leading, reaching the international advanced level.

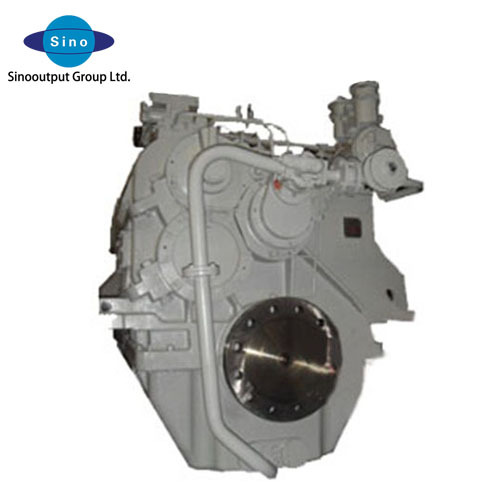

2000 Series Marine Gearbox
The 2000 series marine gearbox has the functions of inversion, smoothing, clutching, deceleration, and bearing the thrust of the propeller. The HC2000/ HCD2000 gearbox is a vertical non-center primary transmission structure, and the HCT2000/ HCT200/1 gearbox is a vertical non-center secondary transmission structure. This series of gearboxes have the characteristics of compact structure, large speed ratio range, large bearing capacity, large thrust bearing, convenient disassembly and maintenance, etc.
2000 series marine gearboxes are suitable for large ocean-going fishing vessels, transport vessels, passenger vessels, container vessels, tugboats and various engineering vessels.

Parameters:

model	input speed r/min	reduction ratio (i )	transfer ability kW/r/min	Rated thrust (kN)	Center distance (mm )	length x width x height (mm )	net weight (kg )	Manipulation type	Link flywheel	connection housing	Input and output steering when following the train
HC2000	600-1500	2.28 2.52 3.13 3.52	1.48	190	450	1600 ×1500 ×1400	3700	Push-pull flexible shaft Electronic control Air control	According to the host flywheel	no cover	on the contrary
		3.91	1.42
		4.40	1.23
HCD2000	600-1500	3.00 3.58 3.96 4.45 4.95	1.48	220	560	1600 ×1620 ×1645	4200	Push-pull flexible shaft Electronic control Air control	According to the host flywheel	no cover	on the contrary
		5.26	1.42
		5.43	1.34
		5.75	1.23
		6.05	1.19
HCT2000	600-1500	5.19 5.49 5.94 6.58 7.01 7.48 7.76 8.00	1.48	270	625	1284×1600×1835	5600	Push-pull flexible shaft Electronic control Air control	According to the host flywheel	no cover	same
		8.57	1.42
		8.84	1.34
		9.43	1.23
		10.04	1.21
		11.00	1
HCT2000/1	600-1500	7.94 8.57 9.06 9.59 10.16 10.40 11.11	1.48	340	690	1500 ×1760 ×2010	7000	Push-pull flexible shaft Electronic control Air control	According to the host flywheel	no cover	same
		11.49	1.43
		2.08	1.4
		12.42	1.246
		12.97 13.51 13.92	1.18
