  • Advance 1100-1200 Series Marine Gearbox
  • Advance 1100-1200 Series Marine Gearbox

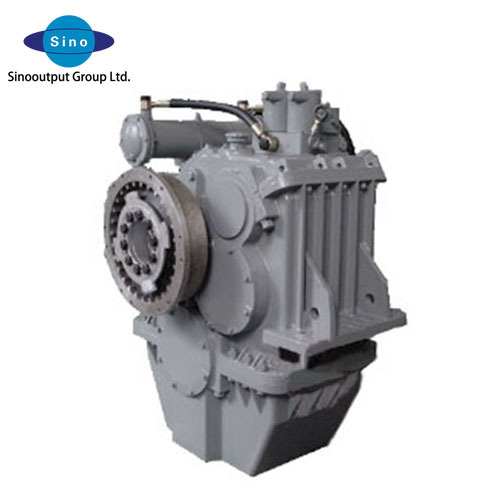

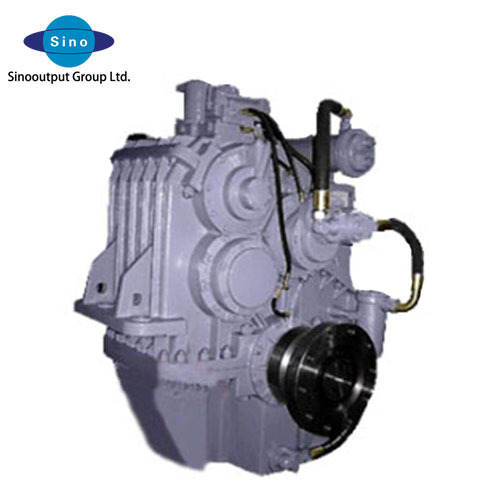

Advance 1100-1200 Series Marine Gearbox

No.00609
This series of gearboxes have the characteristics of compact structure, large speed ratio range, large bearing capacity, large thrust bearing, convenient disassembly and maintenance, etc.
  • Advance 1100-1200 Series Marine Gearbox
  • Advance 1100-1200 Series Marine Gearbox
Desciption

HC series marine gearboxes have a power range of 10kW to 3000kW and a speed ratio range of 1.5 to 24:1. The product specifications are complete and the market share is high. They are widely used in various heavy-duty ships such as transport vessels, fishing vessels, and work vessels. The company's product design and manufacturing capabilities are leading, reaching the international advanced level.

1100-1200 Series Marine Gearbox
1100-1200 series marine gearboxes have the functions of inverting, smoothing, clutching, decelerating, and bearing propeller thrust. The HC1200/ HC1200/1 gearbox is a vertical non-center one-stage transmission structure, the HCT1100/ HCT1200/ HCT1200/1/ HCT1280/2 gearbox is a vertical non-center two-stage transmission structure, and the HCW1100 gearbox is a vertical non-center three-stage transmission structure. This series of gearboxes have the characteristics of compact structure, large speed ratio range, large bearing capacity, large thrust bearing, convenient disassembly and maintenance, etc.

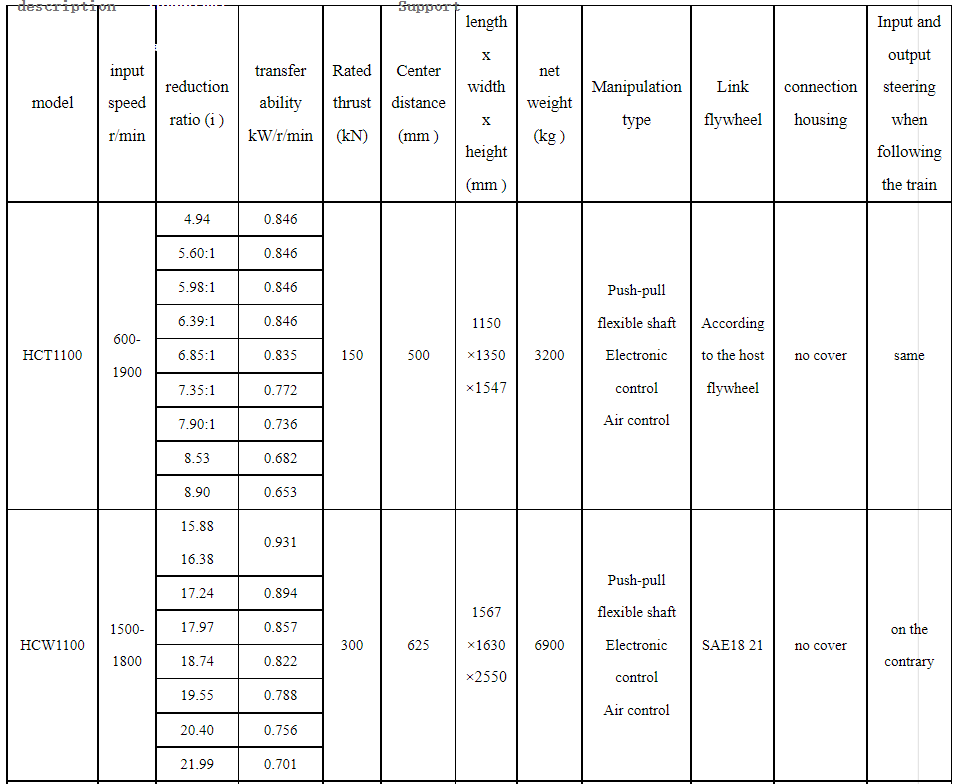

                                                                                  Parameters:
