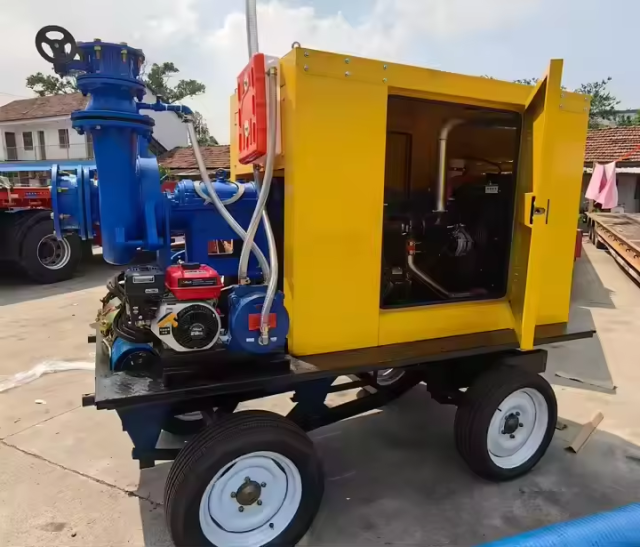

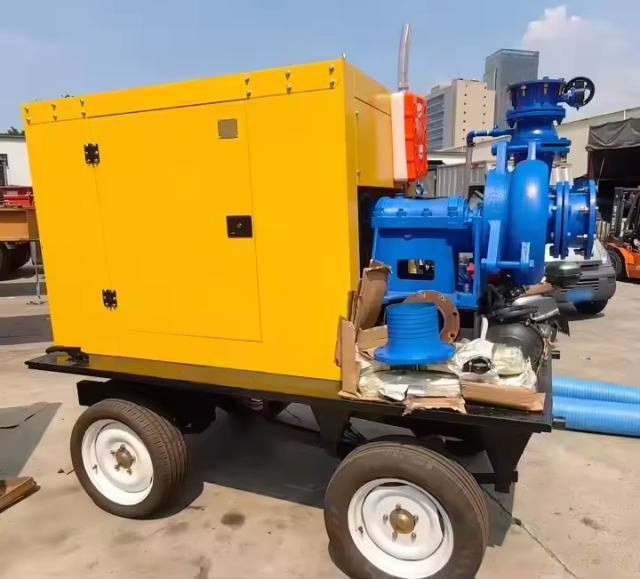

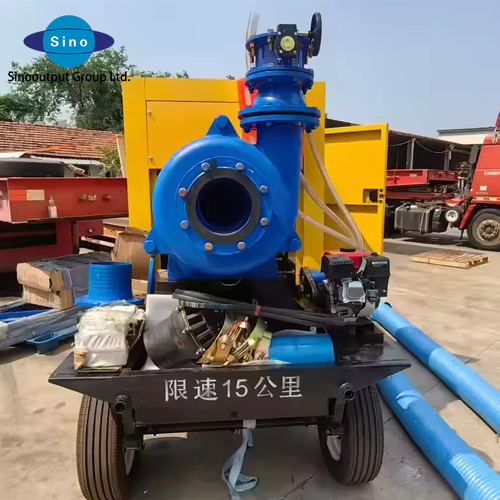

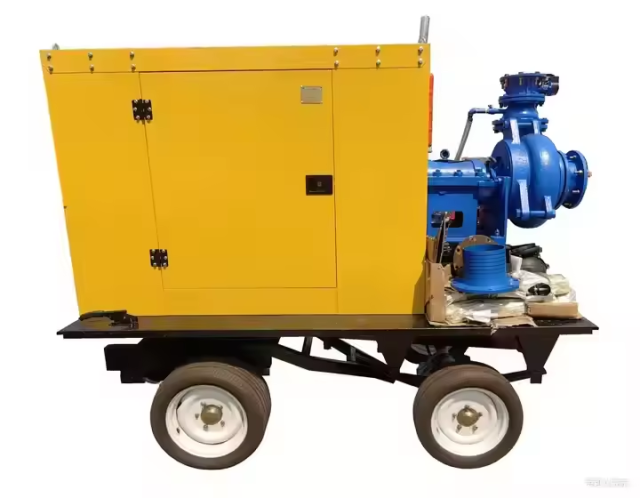

Certified Custom High Pressure Portable Diesel Water Pump Marine Use
The SINO-DP504 Diesel Water Pump is engineered for high-capacity performance, boasting an impressive 504m³/h flow rate and 23m head height. Designed to meet the demands of rapid dewatering, large-scale irrigation, and flood control, this pump is built with rugged durability and fuel efficiency in mind. With an IP23-rated construction, it provides reliable operation in harsh environments like construction sites and mining operations. Powered by a 1200 rpm low-speed diesel engine, it delivers 15% better fuel economy compared to competitors, ensuring extended service life and cost-effectiveness.
High-Capacity Performance: 504m³/h massive flow rate & 23m head height – ideal for rapid dewatering, flood control, and large-scale irrigation. Rugged Construction: IP23-rated protection against dust and water splashes – thrives in construction sites, mines, and harsh environments. Fuel-Efficient Operation: Optimized 1200 rpm low-speed diesel engine reduces fuel consumption by 15% vs. competitors, extending service life.
Global Certifications ✅ MTC (Material Test Certificate) ✅ ISO 9001 Quality Management System ✅ CE Compliant (EU Safety Standards) Approved for worldwide deployment
Details Images
Specification
Model
SINO-DP504
Pump lift
23m
Speed
1200rpm
Discharge
504m³/h
Protection grade
IP23
Certificate
MTC, ISO, CE.
