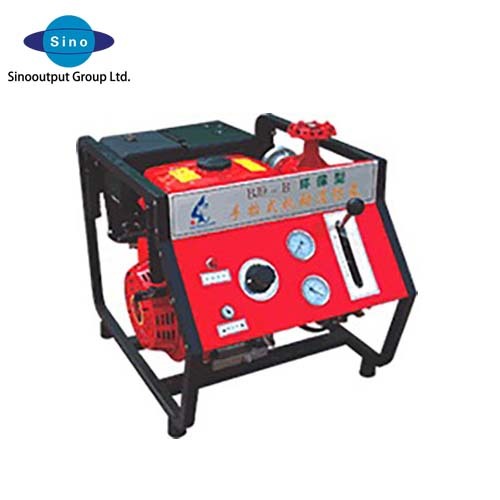

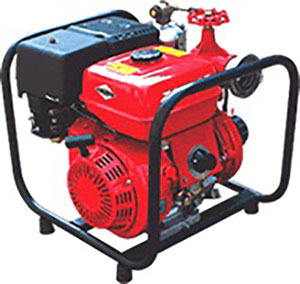

| SINO-9.6 Hand-carried motorized fire pump | SINO-8.10 Hand-carried motorized fire pump |
| Engine Type: Forced air cooling, four stroke, single cylinder Bore x Stroke: 88x64mm Compression ratio: 8:1 Maximum power and speed: KW/(r/min): 9.6 (13 hp)/3600 Ignition method: Transistor ignition Start mode: hand-pull rope start, electric start Water pump Type: single-stage single-suction axial suction centrifugal pump Flow: 35 cubic meters per hour Outlet pressure: ≥ 0.5Mpa Lift: 50 meters Water diversion method: slide vacuum diversion water suction depth: 7M Diversion time: 7 meters deep absorption time less than 25 seconds Inlet diameter: DN65mm Outlet diameter: DN65mm Total net weight: 75KG |
Engine Type: Forced air cooling, four stroke, single cylinder Bore x Stroke: 88x64mm Compression ratio: 8:1 Maximum power and speed: KW/(r/min):8.10(11hp)/3600 Ignition method: Transistor ignition Start mode: self-returning hand-pull rope start Water pump Type: single-stage single-suction axial suction centrifugal pump Flow: 30 cubic meters per hour Outlet pressure: ≥ 0.46Mpa Lift: 50 meters Water diversion method: exhaust self-suction water suction depth: 7M Diversion time: 7 meters deep absorption time less than 40 seconds Inlet diameter: DN65mm Outlet diameter: DN65mm Total net weight: 49KG |
