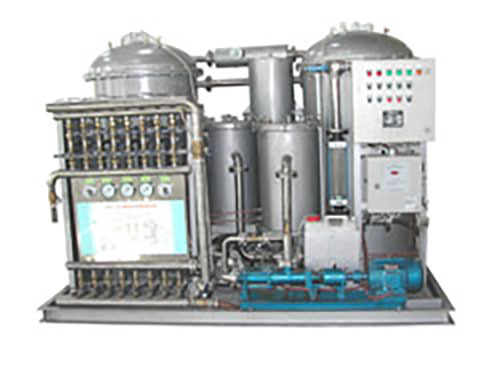

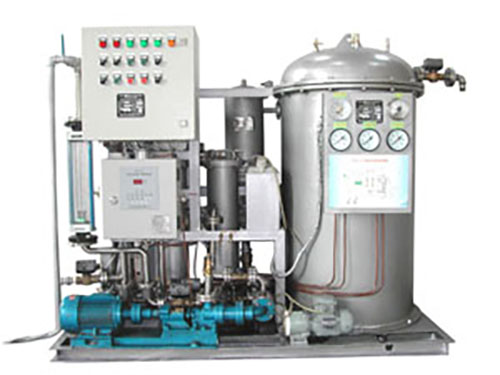

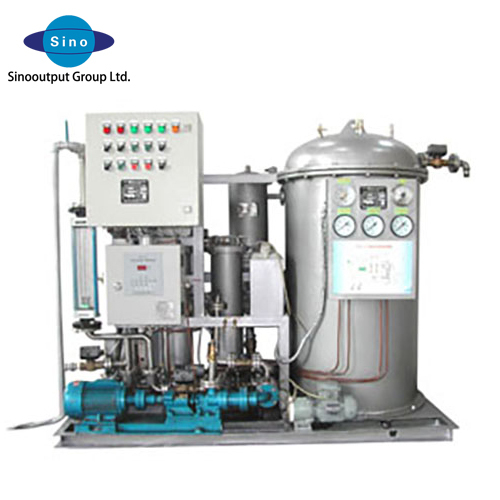

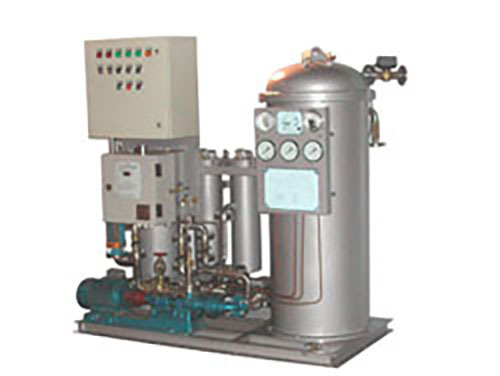

Marine Oil Sewage Treatment Device

No.00669
This device is a high-end technology product for marine environmental protection, which can effectively treat the bilge water containing various fuel oils, extremely high-density residual residues, and emulsified mixtures of iron oxides and surfactants.
  • Marine Oil Sewage Treatment Device
  • Marine Oil Sewage Treatment Device
  • Marine Oil Sewage Treatment Device
Desciption

Marine Oil Sewage Treatment Device

On July 18, 2003, the Marine Environmental Protection Committee of the International Maritime Organization passed the resolution of IMO.MEPC.107(49). This resolution puts forward new requirements for 15ppm ship bilge water treatment devices in Annex I of MARPOL 73/78. The device developed for this purpose is a high-end technology product for marine environmental protection. It can effectively treat the bilge water containing various fuel oils, extremely high-density residual residues and emulsion mixtures prepared with iron oxides and surfactants on ships. New oil-water separator.
This series of oil sewage treatment devices has a total of nine specifications and models, the smallest can be configured for ships under 1,000 tons, and the largest can be configured for large ships over 300,000 tons. According to the needs of users, we can design and produce oil-water separation devices with special requirements.
In addition to being suitable for marine bilge oily sewage treatment, this device can also be used for oily sewage treatment in industrial and mining enterprises, and its discharge standard fully meets the relevant requirements of environmental protection departments.






Parameters

Type

SINOYW-0.25

SINOYW-0.5

SINOYW-0.5

SINOYW-1.0

SINOYW-1.5

Rating/ max Capacity (m3/h)

0.25/ 0.31

0.5/0.62

0.5/0.62

1.0/1.25

1.5/1.87

Power of pump(kw)

0.38

0.50

0.75

1.10

1.10

Electric heater power (kw)

1

3

3

---

---

Steam heater (m2/kw)

---

---

---

1/30

1.5/45

15ppm Bilge Alarm

option

option

included

included

included

Bas(channel steel)(mm)

#5 900*490

#6
1100*690

#6
1540*750

#6 1850*950

#8
2230*1110

Height(mm)

1300

1400

1475

1500

1500

Dry/ net weight(kg)

300/ 450

500/ 700

600/800

800/860

1060/1810>

Applicable ship vessel

1000 DWT

10005000 DWT

10005000 DWT

510 KDWT

1030 KDWT



















Type

SINOYW-2.0

SINOYW-2.5

SINOYW-3

SINOYW-4

SINOYW-5

Rating/ max Capacity (m3/h)

2/2.25

2.5/3.12

3/3.75

4.0/5.0

5/6.25

Power of pump (kw)

2.20

2.20

3.0

3.0

3.75

Electric heater power (kw)

---

---

---

---

---

Steam heater (m2/kw)

2/60

2.5/75

3/4

4/60

5/75

15ppm Bilge Alarm

included

included

included

included

included

Bas (channel steel) (mm)

#8 2350*1200

#8
2550*1250

#10 2600*1600

#10 2700*1700

#10 3200*2150

Height(mm)

1820

2000

1560

1820

2000

Dry/ net weight(kg)

1260/2260/

1500/2800

1800/3200

2100/3900

2500/4600

Applicable ship vessel

3050 KDWT

50100 KDWT

100~200 KDWT

100300 KDWT

300KDWT above











Sinooutput—— Your shipbuilding one stop spare parts supplier and consultant.
Sinooutput had serviced more than 398 shipyard oversea, the ship types includes cargo ship, container ship, bulk carrier, fishing boat, oil tanker, LCT, Ro-ro and sand suction ships, tug boat, ice-breaker, militray boats and all kinds of speed yachts.
If you have any questions and inquiries about our products, please add WhatsApp 008613564780885, or leave us a message. We will provide you with professional consulation and catalogs.
