ONWA GPS Antenna

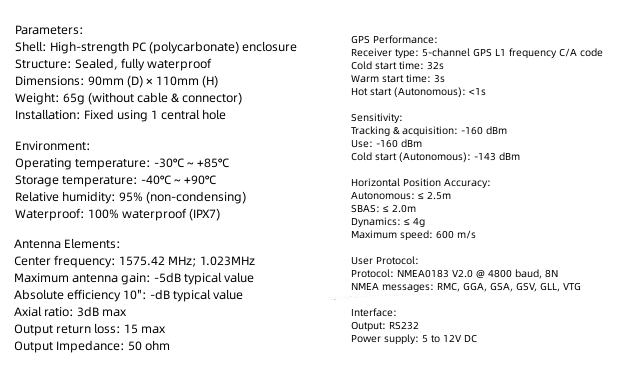

Parameters:
◆ Shell: High-strength, corrosion-resistant PC (polycarbonate) resin
◆ Structure: Sealed, completely waterproof
◆ Installation: Use 1-inch hollow tube for fixing
Cable & Connector:
◆ RF cable: 10 meters RG-59
◆ Connector: BNC connector is provided by default
Use environment:
◆ Operating temperature: -30℃～+85℃
◆ Storage temperature: 40℃～+90℃
◆ Relative temperature: 95% non-condensing
◆ Waterproof level: 100% waterproof (IPX-7)
Electrical performance:
A. Antenna
◆Center frequency: 1575.42Mhz±1.023Mhz
◆Peak absolute gain: +5dB typical value
◆Absolute gain 10: -1dB typical value
◆Axial ratio: 3dB maximum
◆Output standing wave ratio: 1.5 maximum
◆Output impedance: 50ohm
B. Low noise amplifier
◆Center frequency: 1575.42Mhz
◆Power gain: 27dB typical
◆Bandwidth: 2Mhz min
◆Noise figure: 1.5 maximum
◆Out-of-band attenuation: 2dB min@Fo±50Mhz
◆Power supply voltage: 3.3～5.0VDC
◆Current consumption: 12mA max
◆VSWR: 2.0 max
◆Output impedance: 50ohm
C. Overall performance (antenna element, LNA and cable)
◆Center frequency: 1575.42Mhz
◆Gain: 26dB min
◆Noise figure: 2.0max
◆Bandwidth: 2Mhz min
◆Axial ratio: 3dB max
◆VSWR: 2.max
◆Output impedance: 50 ohm

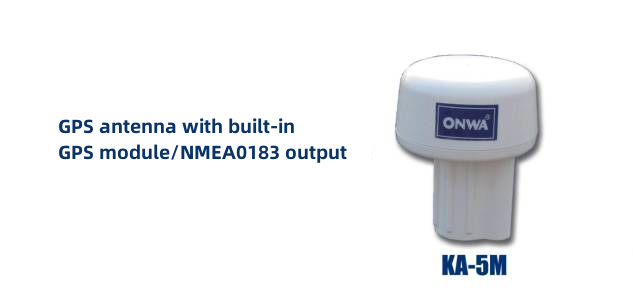

ONWA GPS Antenna
GPS Antenna and Signal Output
KA-GC01
KA-GC05

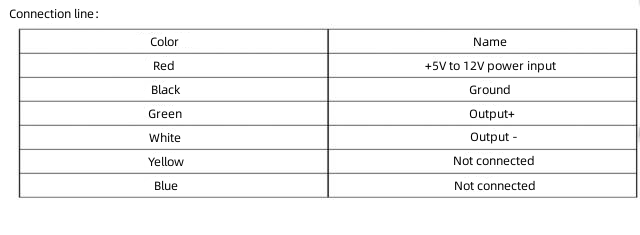

NMEA0183 Output (RS232). Baud Rate: 4800
-KA-GC01
GGA, GLL, GAV, RMC, VTG, GMS, HDT: 1HZ
-KA-GC05
GGA, RMC, VTG, GMS: 1HZ
HDT: 5Hz

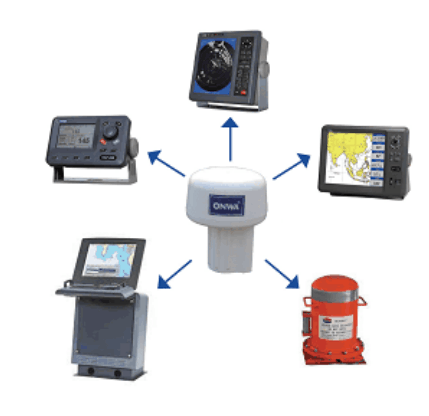

◆KA-GC01 is suitable for GPS chart plotter, ECDIS
◆KA-GC05 is suitable for marine navigation radar, automatic steering instrument
◆Can be equipped with other navigation equipment to work independently
◆Working voltage: 5~18VDC
◆Magnetic induction true bearing output
◆Provide high-precision heading and position data
◆Economical first and position information solution
◆Built-in 3D digital magnetic sensor and 3D linear acceleration sensor
◆±1.3 to 8.1 Gauss magnetic field
Able to independently provide heading, position, speed and course information for most navigation equipment on your ship
